Start Lights

Instance

• Name: StartGlow (opposed to StartLight. This is to enable audio effects on start light in game)

GDB

• NumStartingLights = number of red lights + 1

Material

• Shader "Dashboard Element Shader" or "L2DASHBOARD"
• Name: rdlta, b, c, d, e for upto five red lights
• Name: grlta for green light (optional)
• Emmisive mask set to white.

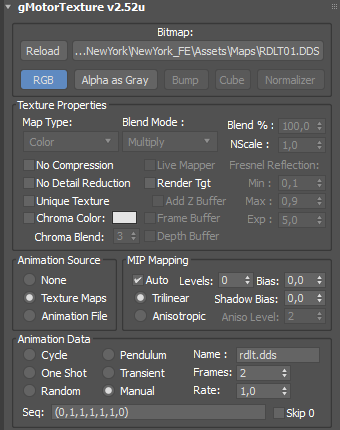

• Animation Data (set in "Animation" section of gMotor Texture)
  • Name: rdlt.dds
  • Frames: 2
  • Sequence example for two lights (brackets!)
    • rdlta: (0,1,1,0)
    • rdltb: (0,0,1,0)
    • grlta: (0,0,0,1)

Pit Lights

Instance

• Name: PitLightOut and/or PitLightIn

Material

• Shader "Dashboard Element Shader" or "L2DASHBOARD"
• Name: rdpitla, grpitla, ylopitla
• Emmisive mask set to white.
• Animation Data (set in "Animation" section of gMotor Texture)
  • Name: rdlt.dds, grlt.dds, ylolt.dds
  • Frames: 2
  • Sequence – don’t forget (brackets)
    • rdpitla: (0,0,1)
    • grpitla: (1,1,0)
    • ylopitla: (0,1,0)
