Requirements

• The exclusion zone should have 12 triangles
• The exclusion zone can be something different than a perfect cube (the sides can be at a different angle than 90 degree).
• If you're having issue with an exclusion zone that is not a cube, try reverting to a cube for a test, check if that works
• Test that the exclusion zone is working both in a static position and while the car is moving at a high speed

Dimensions

You should initially create the exclusion zone to fit the cockpit. After the previous point a good rule of thumb is to add 1 meter to each size (height, width, length) of the exclusion zone.

The rationale behind this is explained in the following section:

• The single rain drop is considered as a rectangle
• For performance reason we're checking in the vertex shader if a vertex is inside or not an exclusion zone
• When a vertex is inside an exclusion zone the opacity is set to 0, when it's outside it is set to 1
• In the pixel shader the opacity is interpolated between the vertices
• The previous point causes the issue in the picture above, this means that the drop half in, half out of the exclusion zone will be visible due to interpolation.
• Empirically i noticed that adding 1 meter to the size of the exclusion zone solve this issue.

Example

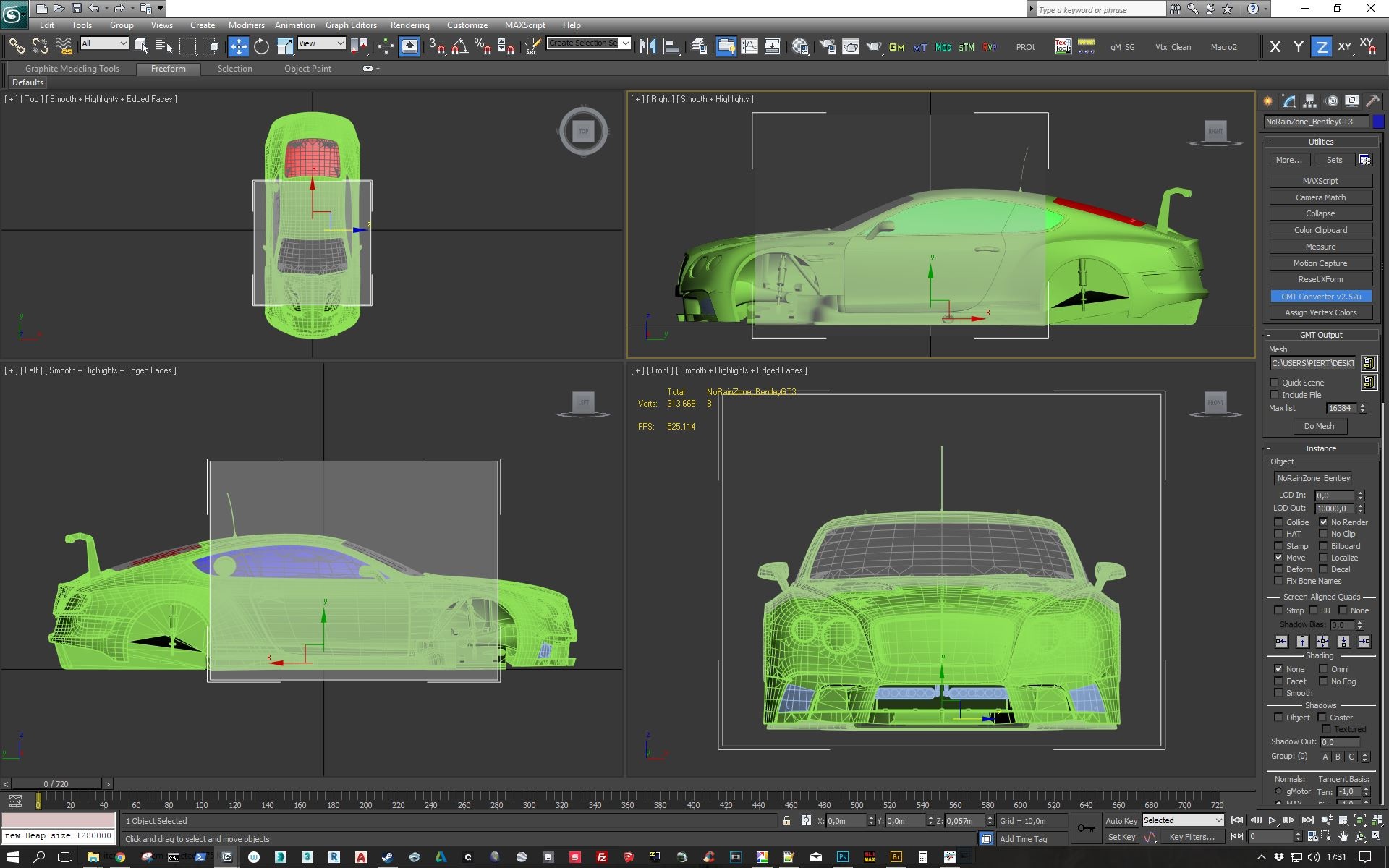

This is the Bentley with a (tested and working) NoRainZone, using this extra size as suggested above. Please use the same technique, or just reuse the box from the Bentley model.
